UK002-5' x 8'
SAM-UK
NO. | UK002-5' x 8' |

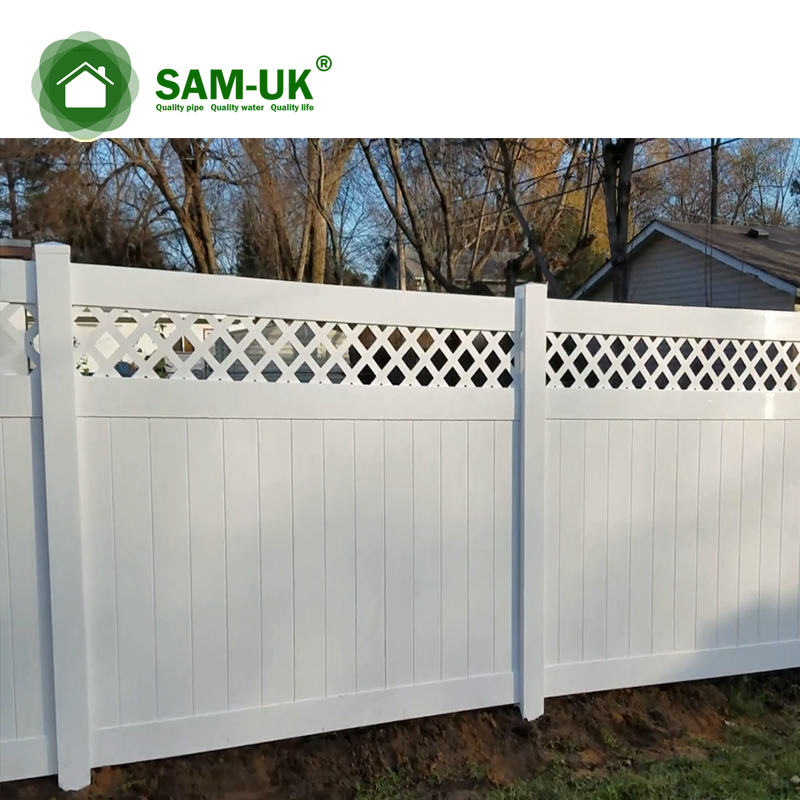

Product Name | Vinyl privacy fence with top lattice |
Material | Vinyl |
Size | 5ft.H with 8ft.W |
Color | White, Gray, TAN, Dark Brown |
Feature | Easily Assembled, Eco Friendly |
1.Post: PO5025/PO5015/PO50135 QTY 1 Size:5" * 5" Thickness:0.25" or 0.15" or 0.135" Weight:1.4kg/ft or 0.85kg/ft or 0.76kg/ft | |
2. Bottom Rail PR155508/PR155509 Size:1-1/2" * 5-1/2" Thickness:0.08" or 0.09" Weight:0.43kg/ft or 0.485kg/ft | |
3.Mid Rail for Lattice RL155509D Size:1-1/2" * 5-1/2" Thickness: 0.09" Weight: 0.5kg/ft | |
4. Top Rail RL153509 Size:1-1/2" * 3-1/2" Thickness:0.09" Weight:0.31kg/ft | |
5. Diagonal Lattice DL1078 Size:1" * 7/8" Opening Thickness:0.035" Weight:0.042kg/ft | |
6. Tongue and Groove TG607805 QTY 15 Size:6" * 7/8" Thickness:0.05" Weight:0.27kg/ft or 0.46kg/ft | |
7. Post Cap UK5050NE QTY 1 Size:5" * 5" | |
8. U-Channel for 7/8" U78 QTY 2 Size:7/8" Weight:0.081kg/ft | |
9. U-Channel for Lattice ULA Size:/ Thickness:/ Weight:0.065kg/ft |
NO. | Specification | Quantiy | Length |
A | 5" * 5" Post | 1 | 102" |
B | 1-1/2" * 5-1/2" Bottom Rail | 1 | 94" |
C | 1-1/2" * 5-1/2" Mid Rail | 1 | 94" |
D | 1-1/2" * 3-1/2" Top Rail | 1 | 94" |
E | 6" * 7/8" T & G | 15 | 34" |
F | 5" * 5" Post Cap | 1 | / |
G | U-Channel for 7/8 | 2 | 31" |
H | U-Channel for Lattice | 2 | 12.62" |
