| Quantity: | |
|---|---|
UK005-5' x 8'
SAM-UK
| NO. | UK005-5' x 8' |

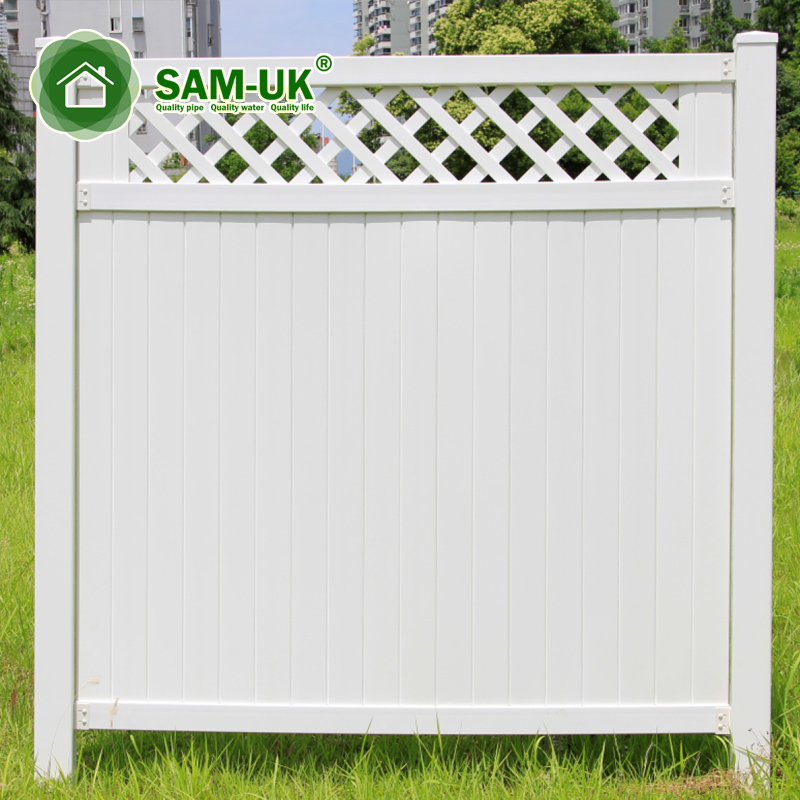

| Product Name | 5x8 vinyl lattice fence panels garden |
| Material | Vinyl |
| Size | 6ft.H with 8ft.W |
| Color | White, Gray, TAN, Dark Brown |
| Feature | Easily Assembled, Eco Friendly |
| 1.Post: PO5025/PO5015/PO50135 QTY 1 Size：5" * 5" Thickness：0.25" or 0.15" or 0.135" Weight：1.4kg/ft or 0.85kg/ft or 0.76kg/ft |
2. Bottom Rail PR155508/PR155509 Size：1-1/2" * 5-1/2" Thickness：0.08" or 0.09" Weight：0.43kg/ft or 0.485kg/ft |  |
3.Pocket Rail PR155508/PR155509 Size:1-1/2" * 5-1/2" Thickness：0.08" or 0.09" Weight：0.43kg/ft or 0.485kg/ft | |
 | 4. Top Rail RL153509 Size：1-1/2" * 3-1/2" Thickness：0.09" Weight：0.31kg/ft |
5. Picket P157808 Size：1-1/2" * 7/8" Thickness：0.08" Weight：0.102kg/ft |  |
6. Tongue and Groove TG607805 QTY 15 Size：6" * 7/8" Thickness：0.05" Weight：0.27kg/ft or 0.46kg/ft |  |
 | 7. Post Cap UK5050F QTY 1 Size：5" * 5" |
8. U-Channel for 7/8" U78 QTY 2 Size：7/8" Weight：0.081kg/ft |  |
| NO. | Specification | Quantiy | Length |
| A | 5" * 5" Post | 1 | 96" |
| B | 1-1/2" * 5-1/2" Bottom Rail | 1 | 94.5" |
| C | 1-1/2" * 5-1/2" Mid Rail | 1 | 94.5" |
| D | 1-1/2" * 3-1/2" Top Rail | 1 | 94.5" |
| E | 1-1/2" * 7/8" Picket | 25 | 14.5" |
| F | 6" * 7/8" T & G | 15 | 36" |
| G | 5" * 5" Post Cap | 1 | / |
| H | U-Channel for 7/8 | 2 | 33" |
